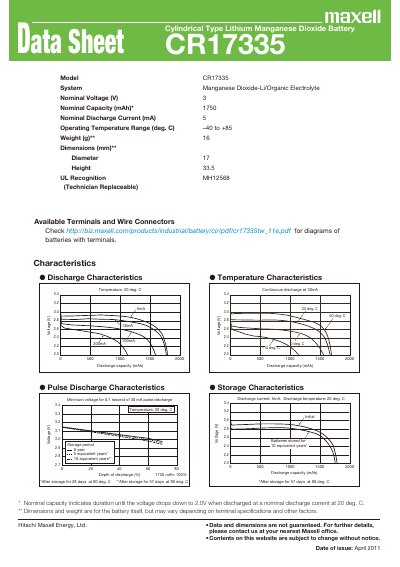

The Maxell CR17335 data sheet provides specifications such as 3 V nominal voltage, 1750 mAh capacity, 5 mA discharge current, operating temperature –40 °C…
The CR17335 is a cylindrical lithium manganese dioxide (Li/MnO2) battery designed for industrial applications. It features a nominal voltage of 3 V and a capacity of 1750 mAh, delivering reliable performance across a wide temperature range.
Key specifications include a nominal discharge current of 5 mA, operating temperature from –40 °C to +85 °C, weight of 16 g, and dimensions of 17 mm in diameter by 33.5 mm in height. Additional data cover pulse discharge characteristics, temperature performance, and storage life equivalents.
| Nominal Voltage | 3 V |
|---|---|
| Nominal Capacity | 1750 mAh |
| Nominal Discharge Current | 5 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Weight | 16 g |
| Diameter | 17 mm |
| Height | 33.5 mm |
| Storage Period (equivalent years) | 0, 5, 10 years |
The nominal voltage is 3 V.
The battery operates from –40 °C up to +85 °C.
Diagrams are available at http://biz.maxell.com/products/industrial/battery/cir/pdf/cr17335tw_11e.pdf.
