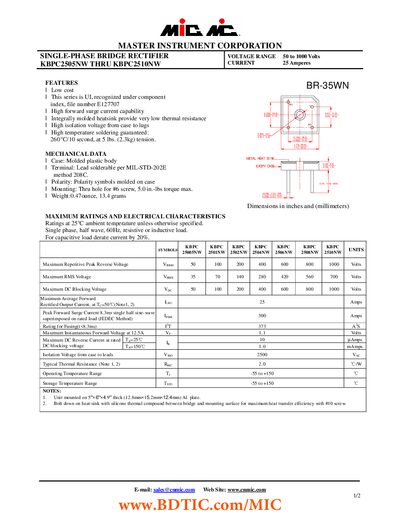

Datasheet for Master Instrument single‑phase bridge rectifiers KBPC2505NW through KBPC2510NW, with electrical ratings and mechanical data.
The KBPC2505NW‑KBPC2510NW series are low‑cost, UL‑recognized single‑phase bridge rectifiers with a molded plastic body and integrated heatsink for low thermal resistance. Features include high forward surge capability, high isolation voltage, and temperature‑soldering up to 260 °C.
The series covers voltage ranges from 50 V to 1000 V and a continuous forward current of 25 A. Key electrical specifications such as VRRM, VRMS, VDC, and thermal resistance are provided, along with mechanical mounting details for thru‑hole installation on a heat‑sink plate.
| Voltage range | 50 V to 1000 V |
|---|---|
| Maximum repetitive peak reverse voltage (VRRM) | 50 V‑1000 V (model dependent) |
| Maximum RMS voltage (VRMS) | 35 V‑700 V (model dependent) |
| Maximum DC blocking voltage (VDC) | 50 V‑1000 V (model dependent) |
| Isolation voltage (case to leads) | 2500 V AC |
| Operating temperature range | -55 °C to +150 °C |
Isolation voltage from case to leads is 2500 V AC.
Mounting is a thru‑hole for a #6 screw with a maximum torque of 5.0 in‑lb.
It can operate from –55 °C up to +150 °C.
