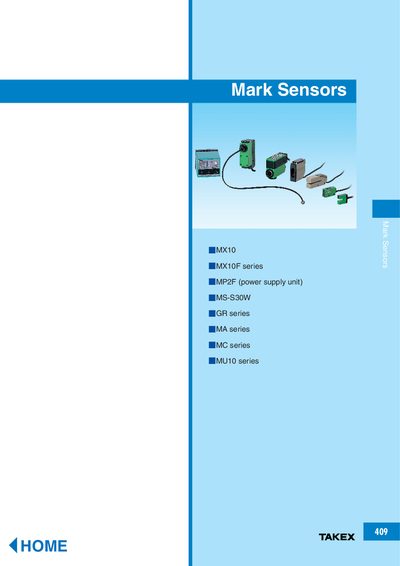

Mark Sensors MX10, MX10F, MP2F, MS‑S30WGR, MA, MC, MU10 Series Sensor Product Leaflet

About this manual

Mark Sensors offers a range of optical mark sensors for detecting colors, register marks, and fluorescent marks in packaging, printing, and automation lines. The sensors operate without contact and support various light sources (white, red, green, blue, UV) and detection methods (through‑beam, reflective, fiber‑optic).

The MX10, MX10F, MP2F, MS‑S30WGR, MA, MC, and MU10 series cover through‑beam, reflective, and U‑shaped configurations, providing fast response times (20 µs), high cyclic frequencies (up to 25 kHz), and adjustable sensitivity via multi‑turn potentiometers.

What's inside

• Sample Applications
• List of Models
• Rating/Performance Specification
• Dimensions
• Input/Output Circuit and Connection
• Panel Layout and Functions
• Environmental Specification
• Mounting and Installation
• Power Supply and Consumption
• Adjustment and Indicators

Specifications

Frequently asked questions

What is the detecting distance of the MX10 sensor?

The MX10 sensor detects marks at a distance of 13 mm (8 mm from the lens hood).

How can the sensor sensitivity be adjusted?

Sensitivity is adjusted with a multi‑turn potentiometer (4‑turn adjustment) on the sensor front panel.
