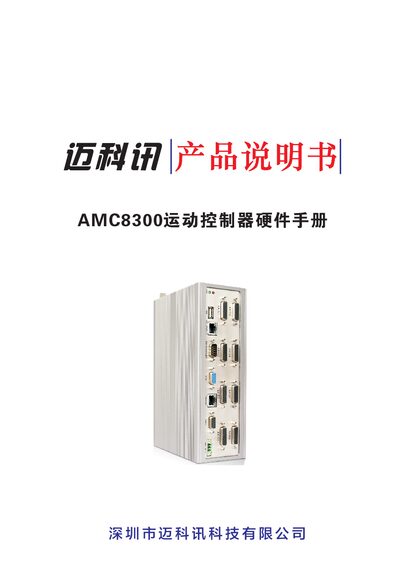

The AMC8300 hardware manual from MaikeXun details specifications, interfaces, control modes, and driver wiring for the motion controller.
The AMC8300 is an 8‑axis motion controller featuring an ARM Cortex‑A8 processor, Ethernet, and multiple I/O interfaces. It supports both standalone (Alone) and A+PC operation modes and can drive stepper, pulse‑type servo, and analog‑type servo motors.
This manual provides a complete description of the controller's hardware resources, wiring diagrams for a wide range of servo drives, configuration parameters, and procedures for system updates and SD‑card replacement. This manual is written in Chinese.
| Processor | Cortex‑A8 32‑bit 1 GHz |
|---|---|
| Flash Memory | 2 GB |
| DDR Memory | 512 MB |
| ADC Channels | 8 × 14‑bit |
| DAC Channels | 8 × 16‑bit |
| Maximum Pulse Frequency | 4 MHz |
The maximum pulse frequency is 4 MHz.
It uses a 32‑bit ARM Cortex‑A8 processor running at 1 GHz.
