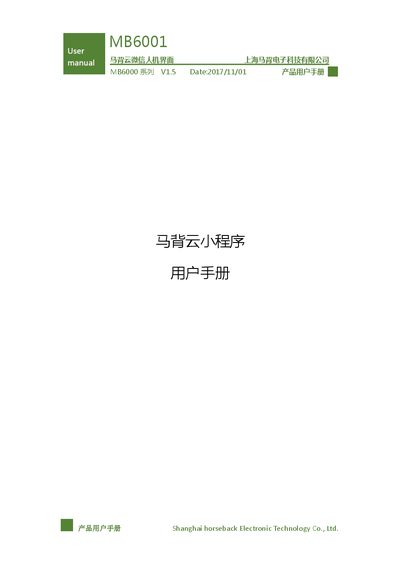

The Mabei Yun MB6001 WeChat HMI user manual explains Modbus basics, device setup, parameter configuration, monitoring, and user management.
This manual introduces the MB6001 WeChat HMI, a Modbus RTU‑based device that functions as a master in industrial communication networks. It covers the essential Modbus concepts such as protocol, slave address, function codes, and register addresses, enabling users to integrate the device with standard Modbus slaves.
The guide walks users through the application workflow: adding the device via the Mabei Yun WeChat mini‑program, configuring device parameters and communication settings (baud rate, data bits, stop bits, parity), managing monitoring items and tasks, and handling user accounts and device maintenance functions such as expiry renewal and SMS alerts. This manual is written in Chinese.
| Modbus protocol | Modbus RTU |
|---|---|
| Device role in Modbus network | Master |
| Maximum number of Modbus slaves supported | 256 |
| Supported baud rates | 1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000, 230400, 256000 bps |
| Supported data bits | 8 and 9 |
| Supported stop bits | 1 and 2 |
| Supported parity | None, Odd, Even |
Open the WeChat mini‑program “马背云”, tap the scan button, scan the device’s QR code, and the device will appear in the main interface.
Up to five WeChat users can be assigned to a device: one administrator and four regular users.
The MB6001 acts as a Modbus master, allowing it to communicate with multiple Modbus slave devices.
