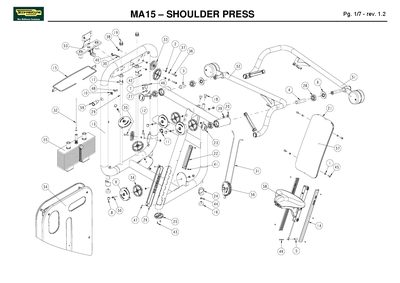

This document is a parts list and exploded view for the MA MA15 Shoulder Press, detailing components such as bushings, bearings, screws, pulleys, and…
The manual serves as a comprehensive inventory of spare parts and assembly components for the MA15 Shoulder Press. It lists items with specific reference codes, descriptions in Italian and English, quantities required, and dimensional specifications.
Key sections include detailed breakdowns of the frame structure, seat adjustment mechanisms, pulley systems, weight stacks (available for 60kg or 80kg configurations), and upholstery parts. The document also provides color coding options for various components like backrests and seats. This manual is written in Italian.
| Selector Rod Holes (60kg) | 12 holes |
|---|---|
| Selector Rod Holes (80kg) | 18 holes |
The selector rod for the 60kg configuration has 12 holes.
Available colors include Grey, Black, Aviation blue, and Bordeaux.
