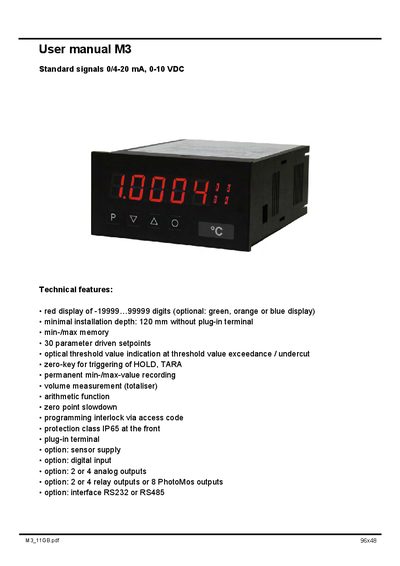

M3 M3_11GB Standard Signals 0/4-20 mA, 0-10 VDC User Manual

About this manual

This manual provides instructions for the M3 M3_11GB Standard Signals device, a compact industrial instrument designed for measuring and displaying direct current or direct voltage. It details the assembly process, electrical connection examples, and the operation of the device's keys and menu levels. The document explains how to perform standard and extended parameterization to configure measuring ranges, input signals, analog outputs, and alarm functions.

What's inside

• Assembly
• Electrical connection
• Function and operation description
• Setting up the device
• Switching on
• Standard parameterisation
• Extended parameterisation
• Alarms / Relay
• Interfaces RS232 / RS485
• Technical data

Frequently asked questions

What is the minimum installation depth for this device?

The minimal installation depth is 120 mm without the plug-in terminal.

What is the maximum torque allowed when tightening the clamping screws?

The torque should not exceed 0.1 Nm when tightening the clamping screws by hand and then with a screwdriver.
