M-Line M1-3VR4B.0001.770DD Panel Instrument User Manual

User manual for the M-Line M1-3VR4B.0001.770DD 4‑digit panel instrument with direct voltage/current measurement and visual limit monitoring.

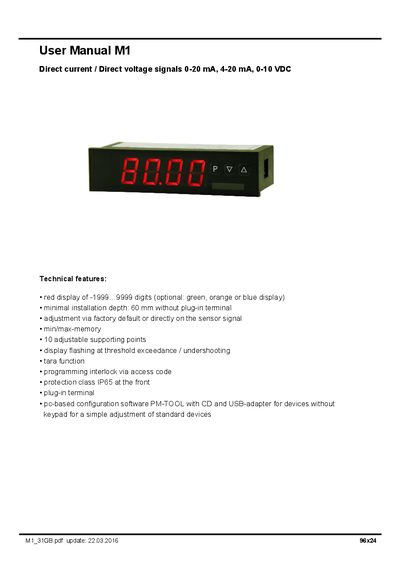

M-Line M1-3VR4B.0001.770DD Panel Instrument User Manual - cover page
Brand
MLINE
Category
Other device
Document type
User Manual
Language
English
Pages
16
File format
PDF
File size
418 KB
Published
30 September, 2026
Updated
30 September, 2026
MD5 checksum
2C9634838345EA080052434AD99BF76C
PDF
M-Line M1-3VR4B.0001.770DD Panel Instrument User Manual PDF

About this manual

The M1‑31 panel instrument is a 4‑digit device for direct voltage (0‑10 VDC) and current (0‑20 mA) signals, featuring visual limit value monitoring, a programmable interlock, and optional colour displays. Configuration can be performed via three front keys or the PC‑based PM‑TOOL software.

The manual covers assembly, wiring, function description, parameterisation (standard and extended), safety advice, error handling and technical specifications such as housing dimensions, protection class IP65, and measurement ranges.

What's inside

  • Brief description
  • Assembly
  • Electrical connection
  • Function description and operation
  • Programming software PM-TOOL
  • Setting up the device
  • Alarms / Switching points
  • Technical data
  • Safety advice
  • Error elimination

Specifications

Housing dimensions (mm)96 × 24 × 60
Display digits4‑digit
Display range-1999 to 9999
Protection class (front)IP65
Power supply (AC)230 VAC ±10 % max 3 VA
