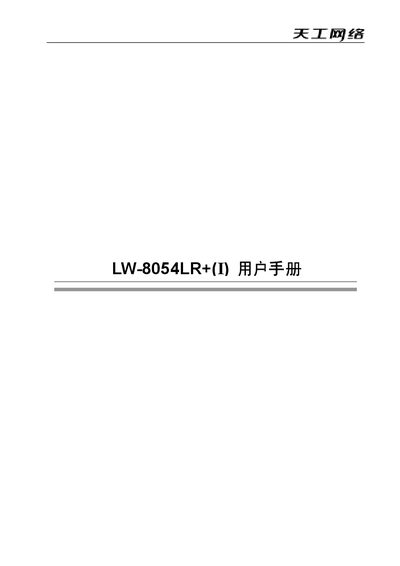

This manual provides installation, configuration, and operation instructions for the LW-8054LR+ (I) outdoor wireless bridge.
The LW-8054LR+ (I) is a 2.4 GHz outdoor wireless bridge that complies with IEEE 802.11g and uses OFDM technology for high data rates and long‑range links. It features a built‑in 15 dBi planar antenna, PoE support, waterproof housing, and a web‑based management interface.
The manual covers hardware installation, initial power‑up, web configuration (including default IP, username and password), and detailed technical specifications. It also includes a full terminology list and ASCII character table for WEP key configuration. This manual is written in Chinese.
| Frequency band | 2.4 GHz |
|---|---|
| IEEE standard | 802.11g |
| Maximum data rate | 54 Mbps |
| Antenna gain | 15 dBi |
| Power input | 100‑240 V AC, 50/60 Hz, 800 mA or 48 V DC PoE, 750 mA |
| RF output power | 35 dBm |
| Receiver sensitivity | -80 dBm @ 54 Mbps |
| Average power consumption | 220 mA |
| Operating temperature | -15 °C to 60 °C |
| Storage temperature | -20 °C to 80 °C |
The default IP address is http://192.168.0.228.
The default username is admin and the default password is password.
It can be powered by a 48 V, 750 mA power module or via PoE (IEEE 802.3af).
It has an integrated 15 dBi planar antenna.
