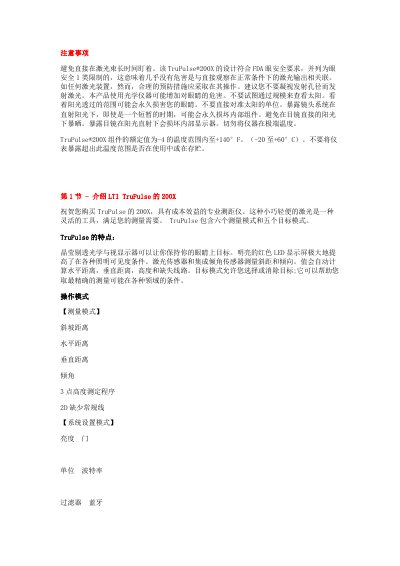

This is the user manual for the LTI TruPulse 200X, a professional laser distance measurer with six measurement modes and five target modes.
The LTI TruPulse 200X is a cost-effective professional distance measurer featuring six measurement modes and five target modes. It utilizes a laser distance sensor and an integrated inclinometer to measure slope distance, horizontal distance, vertical distance, inclination, 3-point height determination, and 2D missing lines. The device includes an optical viewfinder, an LED display, and Bluetooth functionality, and complies with FDA eye safety requirements.
The manual provides instructions on unboxing, installing batteries, and operating the device. It details the functions of the four control buttons, explains various display indicators, and covers system settings such as brightness, units, and Bluetooth configuration. It also includes troubleshooting information for error codes and specifications regarding environmental conditions and measurement accuracy. This manual is written in Chinese.
| Measurement Modes | Slope distance, Horizontal distance, Vertical distance, Inclination, 3-point height determination, 2D missing line |
|---|---|
| Target Modes | Continuous, Inclination, Open package |
| Max Range (Non-reflective target) | 6233 feet (1900 meters) |
| Max Range (Reflective target) | 8200 feet (2,500 meters) |
| Accuracy (High quality target) | ± 1.5 inches (4 cm) |
| Accuracy (Low quality target) | ± 1 foot (30 cm) |
| Inclinometer Accuracy | ± 0.1 degrees typical |
| Power Supply | 3.0V DC nominal; 1 CR123A battery |
| Battery Life | 12 hours continuous use |
| Environmental Rating | Waterproof and dustproof; IP56 |
| Operating Temperature | -4 to +140°F (-20 to +60°C) |
| Eye Safety | FDA Class 1 (CFR21) |
| Optical Magnification | 7X |
The six measurement modes are slope distance, horizontal distance, vertical distance, inclination, 3-point height determination, and 2D missing line.
The maximum measurement distance for a non-reflective target is typically 6233 feet (1900 meters).
The device is powered by a 3.0V DC nominal CR123A battery.
The typical accuracy of the inclinometer is ± 0.1 degrees.
