The manual provides safety warnings, operation steps, maintenance, adjustment, fluid filling, actuator replacement, and troubleshooting for Lippert's…

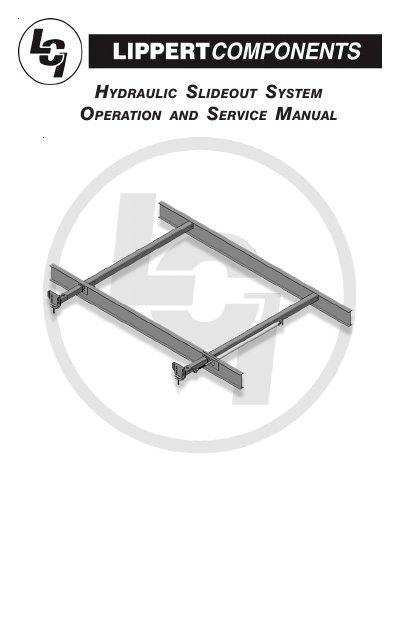

This service manual covers all aspects of the Lippert Hydraulic Slideout System, including safety warnings, pre‑operation checks, and routine maintenance procedures. It explains how to extend and retract the slideout room, use auxiliary power devices, and perform mechanical and electrical adjustments.
Detailed sections describe fluid filling with ATF, synchronizing room travel, replacing the hydraulic actuator, and diagnosing common problems with troubleshooting charts and wiring diagrams. The document is intended for certified service technicians and owners who need to keep the system operating safely and reliably.
| Fluid capacity | approximately 2 quarts (1.89 liters) |
|---|---|
| Tested cycles | over 4,000 continuous cycles |
| Recommended fluid | automatic transmission fluid (ATF), Dexron III or Mercon 5 |
Use automatic transmission fluid (ATF), preferably a full synthetic or synthetic blend such as Dexron III or Mercon 5.
The reservoir holds about 2 quarts (1.89 L) of fluid.
It has been static tested for over 4,000 continuous cycles.
