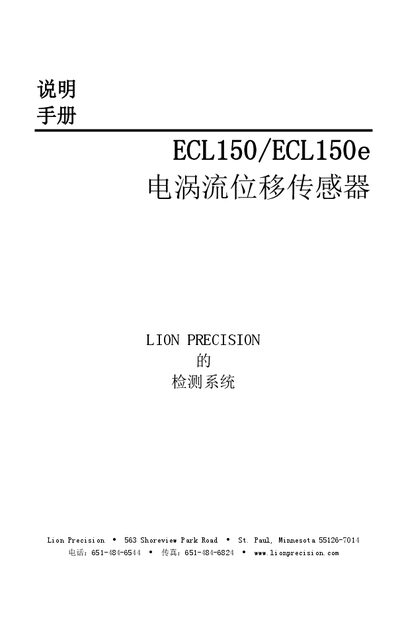

The Lion Precision ECL150/ECL150e user manual provides safety instructions, installation steps, wiring details, and specifications for the eddy current…
This manual covers safety and compliance requirements for the ECL150/ECL150e eddy current displacement sensor, including CE directives, cable length limits, and power source specifications. It also explains the measurement principle, output voltage behavior, and how to interpret LED range indicators.
Installation guidance includes probe mounting distances, cable extensions, grounding of the target, and synchronization when multiple systems are used. Detailed wiring tables describe connector pinouts for power, output, and sync connections, followed by a full list of technical specifications such as power requirements, resolution, linearity, and operating temperature ranges. This manual is written in Chinese.
