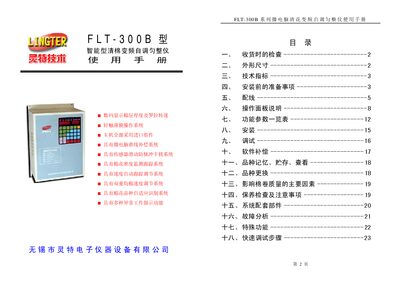

The manual provides installation, operation, troubleshooting, and maintenance instructions for the Lingte FLT-300B intelligent cotton uniformizer.
This manual describes the FLT-300B intelligent cotton uniformizer, a micro‑computer controlled device that monitors cotton layer thickness, roll speed, and cotton density. It includes features such as curve compensation, sensor anti‑pulse interference, and automatic speed tracking.
The document is organized into sections covering receipt inspection, dimensions, technical specifications, pre‑installation checks, wiring diagrams, panel operation, parameter tables, installation steps, debugging, software compensation, variety memory, maintenance, spare parts, fault analysis, special functions, and quick start procedures. This manual is written in Chinese.
| Power supply voltage | AC220±10% |
|---|---|
| Self‑adjusting uniformizer power consumption | 20W |
| Inverter power | 0.75 kW |
| Motor power | 0.55 kW |
| Gearbox reduction ratio | 59:1 |
| Sensor displacement range | ±20 mm |
| Allowed cotton amount variation | ±20 % |
| Motor speed range | 400 rpm ~ 1800 rpm |
| Control accuracy | ±0.1 % |
| Response time | 10 ms |
The “超厚” light turns on when the thickness display exceeds 25, indicating the cotton layer is too thick and the feed amount should be reduced.
Hold the 确认 (confirm) key, press the 复位 (reset) key until the code “8707264” appears, then release both keys; the device returns to factory defaults.
