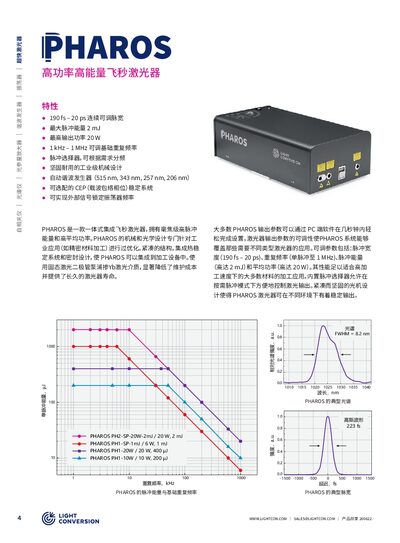

The Lightcon PHAROS product catalog presents specifications, options, and safety information for the PHAROS ultrafast laser series.
The PHAROS series is an integrated femtosecond laser platform designed for industrial material processing. It offers sub‑100‑fs pulse widths, high average power up to 20 W, and a robust sealed design that can be integrated directly into manufacturing equipment.
The catalog lists multiple models (PH1‑10W, PH1‑15W, PH1‑20W, etc.), their performance parameters, optional harmonic‑generation modules (515 nm, 343 nm, 257 nm, 206 nm), and safety classifications. Detailed specifications such as pulse energy, repetition rate, beam quality, and environmental requirements are provided for each configuration. This manual is written in Chinese.
| Maximum average power | 10 W – 20 W (depending on model) |
|---|---|
| Minimum pulse width | < 190 fs (Gaussian pulse shape) |
| Beam quality (M²) | < 1.2 |
| Maximum single‑pulse energy | up to > 2 mJ |
PHAROS lasers are classified as Class 4 lasers.
The PH1‑20W model can deliver pulse energies greater than 2 mJ.
Yes, its compact, sealed design and integrated thermal‑stabilization allow it to be installed directly in processing equipment.
