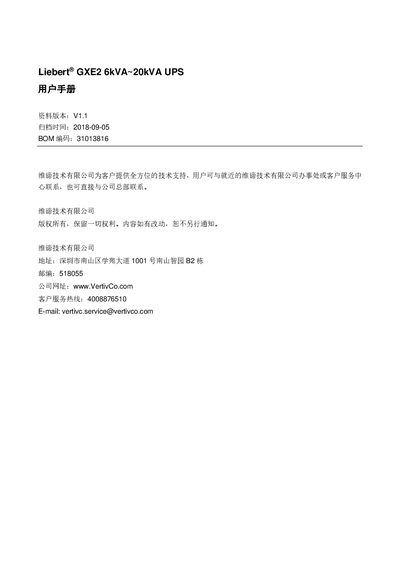

The Liebert GXE2 6kVA–20kVA UPS User Manual provides safety guidelines, installation steps, operation instructions, and specifications for the UPS series.
The Liebert GXE2 series is an online, double‑conversion UPS designed for small computer centers, networking, communication and precision equipment. It offers high efficiency, compact size, and optional parallel operation for redundancy.
This manual covers safety precautions, site preparation, installation and commissioning (both single‑unit and parallel), detailed operation of the LCD panel, common operating procedures, and full technical specifications. Appendices include password setup, LCD parameter tables, and hazardous substance information. This manual is written in Chinese.
| Output Rated Power | 5.4 kW (6 kVA) / 9 kW (10 kVA) / 13.5 kW‑18 kW (15‑20 kVA) |
|---|---|
| Power Factor (rated) | 0.9 |
| Mains Efficiency | up to 95 % (95.5 % for 15/20 kVA) |
| Noise Level | <55 dB (6/10 kVA) / <58 dB (15/20 kVA) |
| Net Weight | 10.9 kg (6 kVA) / 16.10 kg (10 kVA) / 23.5 kg (15/20 kVA) |
The UPS achieves up to 95 % efficiency in mains mode, and up to 95.5 % for the 15 kVA/20 kVA models.
It is recommended that UPS output cable length be kept shorter than 10 m.
