Lida Yingjie LDFD/S Fire Door Monitor User Manual

The manual provides overview, specifications, wiring, operation steps and troubleshooting for the LDFD/S fire door monitor by Lida Yingjie.

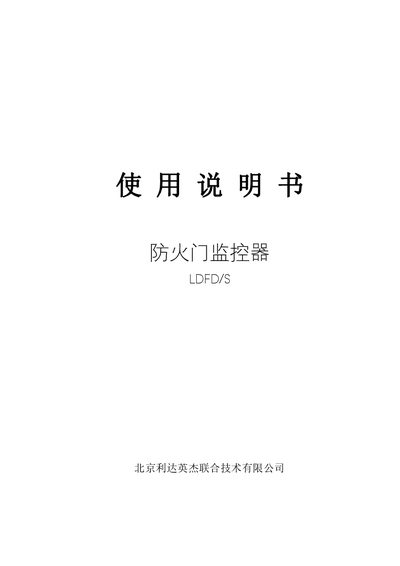

Lida Yingjie LDFD/S Fire Door Monitor User Manual - cover page
Brand
利达英杰
Category
Other
Document type
User Manual
Language
Chinese
Pages
13
File format
PDF
File size
2.3 MB
Published
29 September, 2026
Updated
29 September, 2026
MD5 checksum
2F2FE409C5C3A3E4A436669C59661BDA

About this manual

The LDFD/S fire door monitor is an intelligent two‑bus controller designed to meet GB29364‑2012 fire‑door monitoring requirements. It connects to LDFD‑TB, LDFD‑TK modules and magnetic or motorized door devices, and can be linked with fire alarm systems.

The document includes product overview, technical parameters, structural features, wiring instructions, interface description, operation procedures, fault analysis, safety precautions, transport/storage guidelines, contact information and appendices for expansion boxes and system wiring diagrams. This manual is written in Chinese.

What's inside

  • Overview
  • Technical Parameters
  • Structural Features
  • Wiring Instructions
  • Operation Interface
  • Operation Instructions
  • Fault Analysis and Troubleshooting
  • Precautions
  • Transportation and Storage
  • Contact Information

Specifications

Main power voltage / powerAC187V‑242V 50Hz 40W
Backup power sourceDC12V‑7AH (2 cells series)
Backup protection / recovery voltage21V±0.5V / 23V±0.5V
Display and operation8‑inch LCD touch screen
System capacity1‑4 circuits, up to 4×200 modules
Communication bus voltageDC15V‑20V (effective)
Circuit current<300 mA
Operating environment0 °C–40 °C, humidity ≤95 %, altitude ≤4500 m
DimensionsH550 mm × W430 mm × D150 mm
Protection ratingIP30
Installation methodWall‑mount

Frequently asked questions

What is the default password for device management?

The initial password is 1111.

How many communication modules can be connected to the LDFD/S controller?

It supports 1‑4 circuits, each able to connect up to 200 modules, for a total of up to 800 modules.

What voltage is required for the power input?

Connect AC220 V to the power terminal; the power cable must be at least 1.5 mm² BV wire.
