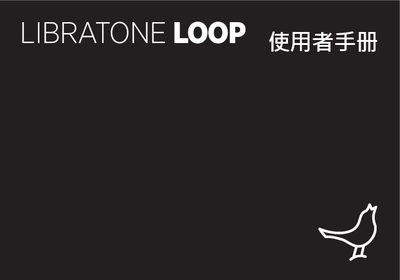

The Libratone Loop1 user manual explains setup, AirPlay, PlayDirect, DLNA, app configuration, troubleshooting and specifications for the wireless speaker.
This manual guides you through the initial setup of the Libratone Loop1 wireless speaker, including AirPlay and PlayDirect configuration via Wi‑Fi, USB or the Libratone app. It also covers how to connect iOS, Android, Mac/PC devices and how to use DLNA.
Additional sections describe how to reset the speaker to factory defaults, change its fabric cover, install a wall‑mount bracket, and provide technical specifications, warranty information and troubleshooting tips. This manual is written in Chinese.
| Driver units | 1×4" low‑frequency driver, 1 passive radiator, 2×1" aluminum tweeters |
|---|---|
| Total power | 120 W |
| Frequency range | 40 Hz – 20 kHz |
| Maximum SPL | 99 dB SPL @ 1 m |
| Power supply | 100‑240 V AC, 50/60 Hz |
| Standby power consumption | 20 W |
| Dimensions | Diameter 33.3 cm, Thickness 8.3 cm |
| Weight | 2.7 kg |
Press the trademark button to power on, connect your iOS device via USB, then hold both the PlayDirect and AirPlay buttons to open the Wi‑Fi setup window and select the Libratone device in the AirPlay menu.
Drill an 8 mm hole in the desired wall location, insert a wall plug, attach the metal bracket with screws, then hang the speaker on the provided hook.
