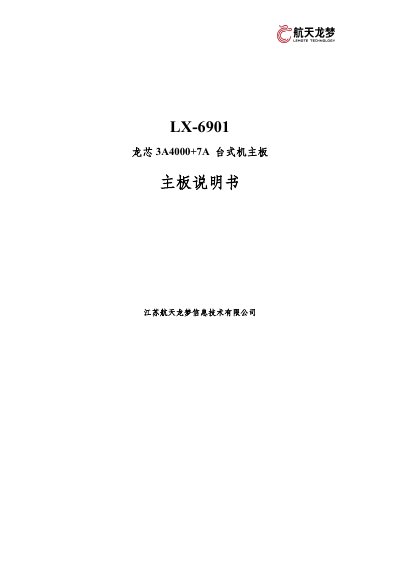

This manual provides installation instructions, hardware specifications, and firmware update procedures for the LEMOTE LX-6901 desktop motherboard.
This document is the user manual for the LEMOTE LX-6901 desktop motherboard. It covers safety guidelines, hardware installation steps for components such as memory, cooling fans, and expansion cards, and detailed descriptions of various connectors and jumpers including power, SATA, USB, and audio interfaces.
The manual also includes a section on updating the firmware using a USB drive. It lists specific technical specifications for the processor, memory, storage, and communication modules, and provides diagrams for the motherboard architecture and rear panel interfaces. This manual is written in Chinese.
The computer's working temperature should be kept between 0-35℃.
When connecting the fan cable, the black wire must be connected to pin 1.
