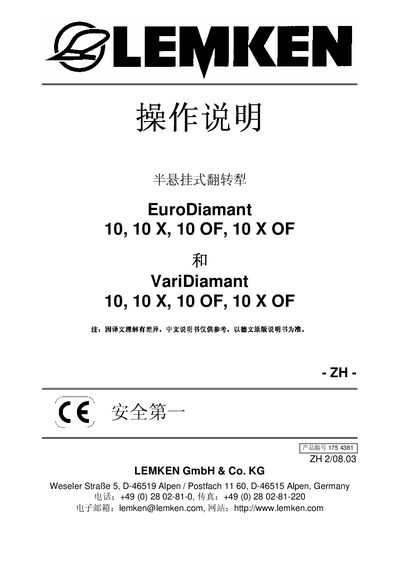

Operating instructions for Lemken EuroDiamant and VariDiamant 10 series half‑hanging reversible plows, covering safety, setup, adjustment and maintenance.
This manual provides detailed safety guidelines, preparation steps for the tractor, and procedures for attaching, operating and removing the half‑hanging reversible plow. It includes specific instructions for different model variants (EuroDiamant and VariDiamant) and outlines required road‑use permits and transport requirements.
The document also covers adjustment of working width, depth, and tilt, maintenance tasks such as bolt inspection and hydraulic system checks, and technical data including power, width and weight for each model. Noise limits and compliance information are provided at the end of the guide. This manual is written in Chinese.
| Max power (kW) | 100 |
|---|---|
| Working width (cm) | 155‑210 |
| Noise level (dB(A)) | 70 |
Plows weighing more than 3000 kg must obtain a road‑use permit before they can be transported on public roads.
No. For the first six weeks a steam‑jet washer must not be used; afterwards the nozzle must be kept at least 60 cm away, with a maximum pressure of 100 bar and temperature of 50 °C.
The plow’s noise emission limit is 70 dB(A).
