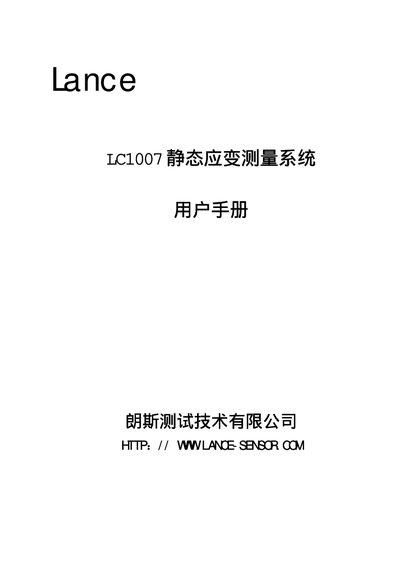

The Lance LC1007 digital strain measurement system manual provides setup, operation, calibration and specifications for the device.
The LC1007 system consists of a digital strain gauge, a computer interface, a printer and dedicated software for automatic calibration and strain measurement of large structures. The manual describes the hardware components, wiring connections and software functions needed to acquire accurate strain data.
Key features include a measurement range of 0‑10000, adjustable strain coefficient (1.00‑3.00), auto‑calibration at a rate of 1 measurement per 3 seconds, support for 1/4, half and full bridge configurations, and power options of DC 2 V or AC 220 V 50 Hz. The guide also covers safety precautions, LED display operation, and troubleshooting steps. This manual is written in Chinese.
| AC supply voltage | 220 V 50 Hz (10% tolerance) |
|---|
