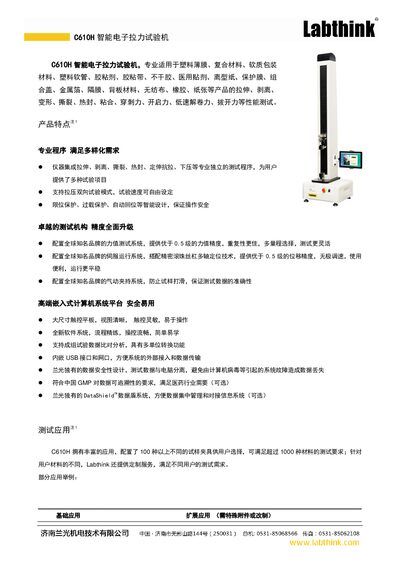

The Labthink C610H electronic tensile testing machine offers high‑precision force and displacement measurement, multiple test modes, and integrated software…
The Labthink C610H electronic tensile testing machine is designed for testing a wide range of materials such as plastic films, composites, packaging, adhesives, and more. It provides independent test programs for tensile, peel, tear, heat‑seal, constant‑extension tensile and compression, with bidirectional force mode and freely adjustable speed.
The system features a high‑precision force sensor (up to 500 N standard) with ±0.5 % accuracy, 0.001 N display resolution, 1000 mm travel, and a servo‑driven screw for ≤0.5 % displacement accuracy. It includes a large touch‑screen tablet, professional software, pneumatic clamping, and optional DataShield™ data‑security features. This manual is written in Chinese.
| Force sensor range | 500 N (standard), optional 50 N, 100 N, 250 N, 1000 N |
|---|---|
| Force accuracy | ±0.5 % of reading (2‑100 % of sensor range) |
| Display resolution | 0.001 N |
| Test speed range | 0.05–500 mm/min |
| Speed accuracy | ±0.5 % of set speed |
| Sample width | 30 mm standard, 50 mm optional |
| Air pressure | 0.5–0.7 MPa (72.5–101.5 psi) |
| Travel | 1000 mm |
| Dimensions (L×W×H) | 500 mm × 520 mm × 1900 mm |
| Power supply | 220 VAC ±10 % 50 Hz or 120 VAC ±10 % 60 Hz |
| Net weight | ≈110 kg |
The machine integrates independent programs for tensile, peel, tear, heat‑seal, constant‑extension tensile, and compression testing, and supports bidirectional force mode with freely set speed.
The force sensor provides a reading accuracy of ±0.5 % within 2 %–100 % of its range.
The standard package includes the main unit, professional software, a tablet computer, and pneumatic film clamps.
