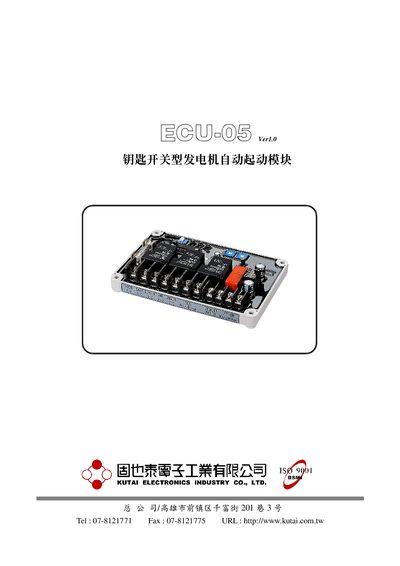

The Kutai ECU-05 manual provides specifications, wiring diagrams, and setup instructions for the key‑switch type generator automatic start module.
The ECU-05 is a key‑switch type automatic start module for gasoline or diesel generators that have basic protection but lack external remote‑control signals. It can receive external remote‑control or ATS signals to start or stop a standby generator and offers three repeated start attempts, with selectable pre‑heat or parking functions.
The manual details the module's compact design, low power consumption, built‑in DC protection fuse, terminal connections, delay settings, status indicator lights, and external wiring diagrams, helping installers configure voltage inputs, timing adjustments, and signal outputs safely. This manual is written in Chinese.
| Rated AC input voltage | 100‑240 VAC ±10% |
|---|---|
| Rated AC frequency | 50‑60 Hz |
| Operating temperature range | -20 °C to +80 °C |
| Maximum relative humidity | ≤95 % |
| Dimensions (H × W × D) | 150 mm × 100 mm × 31 mm |
| Net weight | 380 g |
| Start attempts | 3 repeated starts |
The module can perform three repeated start attempts.
Use the function selection switch (SW): ON sets the output for pre‑heat, OFF sets it for parking.
L1 shows external remote‑control signal activity, L2 indicates normal generator operation, and L3 signals start failure or parking.
