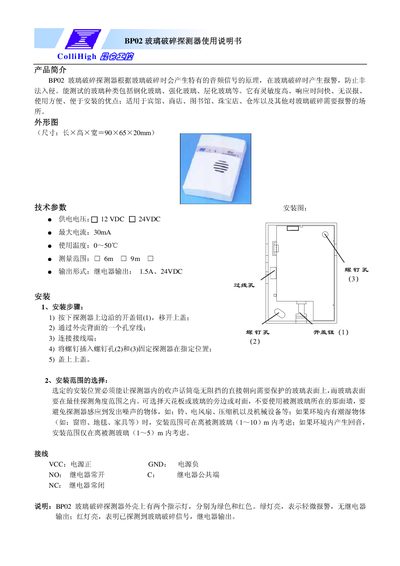

The Kunlun Gongkong BP02 glass break detector manual explains installation, operation, and specifications for reliable intrusion detection.
The BP02 glass break detector senses the unique audio signal produced when glass shatters and triggers an alarm to prevent illegal intrusion. It works with tempered, reinforced, laminated and other glass types, offering high sensitivity, fast response, low false‑alarm rate, and easy installation for hotels, stores, libraries, jewelry shops, warehouses and similar locations.
Installation involves opening the cover, routing wiring through the rear hole, connecting the terminals, and securing the unit with screws. The detector must face the protected glass without obstruction, positioned 1–10 m away (or 1–5 m in echo‑prone environments). Green and red indicator lights show alarm status, and a relay output (1.5 A, 24 VDC) provides a signal when glass break is detected. This manual is written in Chinese.
| Supply Voltage | 12 VDC / 24 VDC |
|---|---|
| Maximum Current | 30 mA |
| Operating Temperature | 0 °C – 50 °C |
| Measurement Range | 6 m / 9 m |
| Output Type | Relay output 1.5 A, 24 VDC |
The green light means a minor alarm with no relay output.
The red light shows that glass break has been detected and the relay is activated.
It requires a 12 VDC or 24 VDC supply with a maximum current of 30 mA.
Install the detector 1–10 m from the glass, or 1–5 m if the environment has echo.
