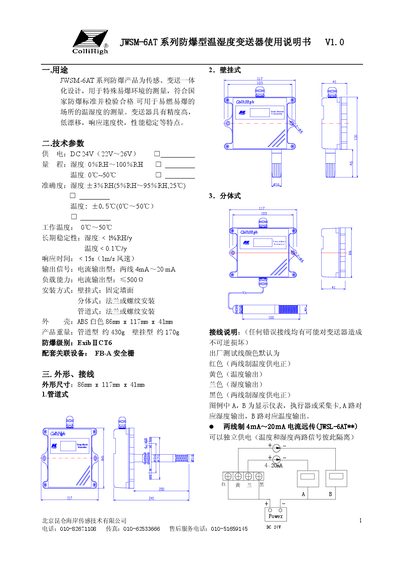

User manual for the JWSM-6AT explosion‑proof temperature and humidity transmitter, covering specifications, installation, operation, and maintenance.
The JWSM-6AT series is an explosion‑proof temperature and humidity transmitter designed for use in hazardous environments. It provides high accuracy, low drift, fast response, and stable performance, with a two‑wire 4‑20 mA output.
The manual details technical parameters, wiring, mounting options (wall‑mount, pipe‑type, split‑type), installation steps, operating instructions, safety precautions, maintenance, transport, storage, unpacking checks, and troubleshooting procedures. This manual is written in Chinese.
| Power supply | DC 24 V (22 V‑26 V) |
|---|---|
| Humidity measurement range | 0 % RH – 100 % RH |
| Humidity accuracy | ±3 % RH (5 % RH‑95 % RH, 25 °C) |
| Temperature accuracy | ±0.5 °C (0 °C‑50 °C) |
| Working temperature | 0 °C – 50 °C |
| Long‑term humidity stability | < 1 % RH/yr |
| Response time | < 15 s (1 m/s wind) |
| Output signal | 4‑20 mA two‑wire |
| Load capability | ≤ 500 Ω |
| Dimensions (pipe type) | 86 mm × 117 mm × 41 mm |
| Weight (pipe type) | ≈ 430 g |
| Weight (wall‑mount type) | ≈ 170 g |
| Explosion protection level | Ex ib II CT6 |
The transmitter requires a DC 24 V supply, acceptable range 22 V to 26 V.
Mount the transmitter using the two φ4 mounting holes on both sides, fixing it to the wall with the supplied expansion screws.
After checking that the wiring is correct, connect DC 24 V and use a multimeter to measure the current output.
It is recommended to calibrate the transmitter at least once a year.
