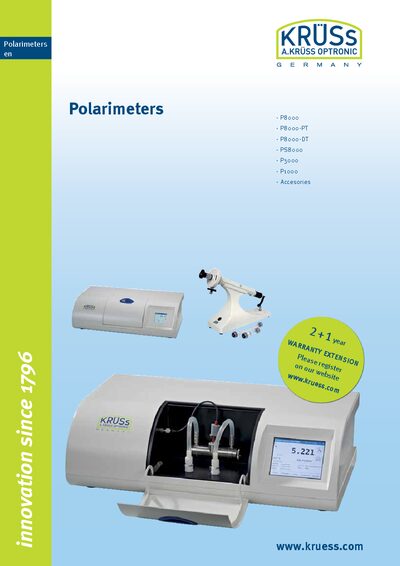

The KRÜSS P8000 Series Polarimeters manual provides operating instructions, specifications, and accessories for the high‑speed polarimeter range.
This manual describes the KRÜSS P8000 Series of automatic high‑speed polarimeters, including the P8000, P8000‑PT, P8000‑DT, PS8000, P3000 and P1000‑LED models. It explains the principle of polarimetry, the instrument’s layout, and the range of applications in pharmaceutical, chemical, sugar and food industries.
Key features covered are the touchscreen interface, fast one‑second measurement time, temperature‑controlled sample tubes, extensive data‑export options (USB, Ethernet, RS‑232), and compliance with GLP/cGMP standards. The document also lists accessories such as polarimeter tubes and calibration quartz.
| Measuring range | ±90° ±259 °Z 0–99.9 g/ml |
|---|---|
| Resolution | 0.001° / 0.01 °Z / 0.1 g/ml |
| Accuracy | ±0.003° ±0.01 °Z ±0.5 g/100 ml |
| Light source | 1 LED with filter |
| Operating voltage | 90–250 V 50/60 Hz |
| Dimensions (cm) | 64.5 x 20.0 x 36.0 |
| Weight | 28 kg |
| Interfaces | RS‑232, USB, Ethernet |
| Temperature measurement range | 0–99.9 °C |
The polarimeter provides RS‑232, USB, and Ethernet interfaces for data export and remote monitoring.
It operates from 90 to 250 V at 50/60 Hz.
Temperature can be measured from 0 °C up to 99.9 °C.
