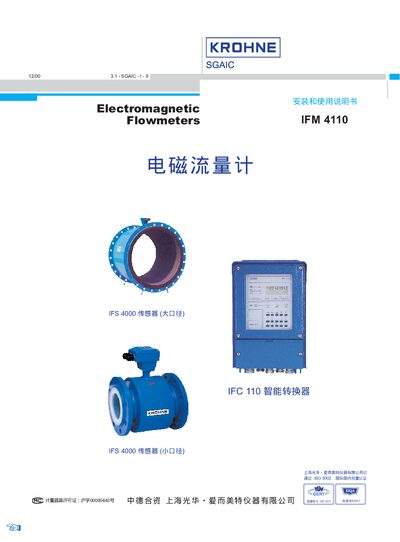

Installation and usage guide for the KROHNE IFM 41 103.1 electromagnetic flowmeter with IFS 4000 sensor and IFC 110 converter.
This guide provides step‑by‑step instructions for installing the IFM 41 103.1 electromagnetic flowmeter, including mechanical mounting, electrical wiring, grounding, and safety requirements for both standard and explosion‑proof environments. It also details the connection of the IFS 4000 sensor and the IFC 110 signal converter, cable types, maximum lengths, and recommended wiring practices.
The manual covers operation settings, flow‑range configuration, signal output options (current, pulse, status), troubleshooting procedures, maintenance tasks such as fuse replacement, and ordering information. Technical specifications, measurement principle, and compliance with CE, EMC, ISO 9001 and VDE standards are also included. This manual is written in Chinese.
| Flow range | 6 L/h to 48 860 m³/h (0.03–225 600 US gal/min) |
|---|---|
| Power supply | 24 V AC/DC (AC 20.4‑26.4 V, DC 18‑31.2 V) |
The device operates from a 24 V AC/DC supply, with an allowed AC range of 20.4‑26.4 V and a DC range of 18‑31.2 V.
