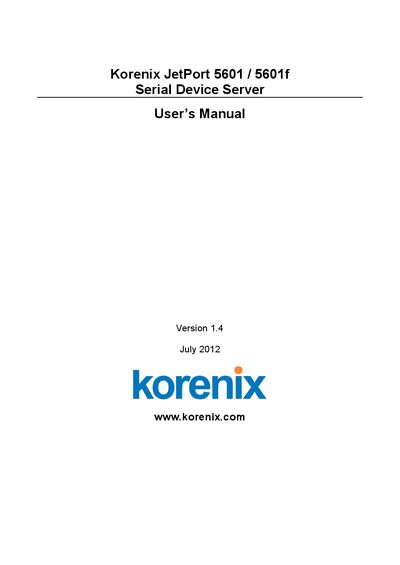

The Korenix 5601/5601f Serial Device Server User Manual provides installation, configuration, and management instructions for the device.
The Korenix JetPort 5601 and 5601f are smart one‑port RS‑232/422/485 to Ethernet (or Fiber) serial device servers. They enable serial devices such as card readers or measurement equipment to communicate over Ethernet, offering redundant dual Ethernet ports or fiber options for flexible networking.
This manual covers hardware installation, power and network connections, LED status indicators, power requirements, and software tools like JetPort Commander. It also explains configuration via the web HTTPS console, Telnet/SSH console, and management features such as SNMP, email alerts, and virtual COM ports.
| Network Interface | 2×10/100BaseTX, Redundant Ethernet (5601) |
|---|---|
| Fiber Connector | 100BaseFX Duplex SC (5601f) |
| Data Rates | 110 bps to 460.8 Kbps |
| Power Input | 12~48VDC (terminal block) / 9~30VDC (power jack) |
| Operating Temperature | -10 to 70°C |
It has redundant dual Ethernet ports with auto‑recovery in less than 200 ms.
The PWR LED shows power status; red on means power is on and booting, green on means normal operation.
Management can be done via the web HTTPS console, Telnet/SSH console, or the JetPort Commander Windows utility.
The device supports up to 460.8 kbps serial speed.
