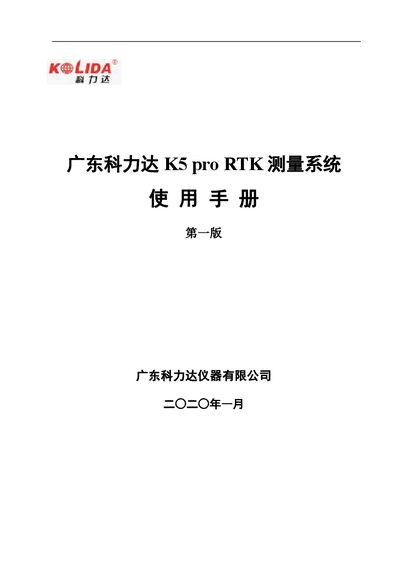

The Kolida K5pro GNSS measurement system manual explains setup, operation, and maintenance of the RTK device.
This manual provides a complete overview of the Kolida K5pro measurement system, including hardware components, configuration options, and workflow for static, RTK, and CORS operations. It also details the integrated Bluetooth, Wi‑Fi, and cellular communications, as well as cloud services and firmware upgrade procedures.
The document covers hardware specifications, accessory descriptions, power management, and troubleshooting tips, helping users install, configure, and effectively use the system in surveying, construction, and utility applications. This manual is written in Chinese.
| Frequency range | 410–470 MHz |
|---|---|
| Radio output power | 25 W high, 10 W low |
| Battery capacity | 7.4 V 3400 mAh (two batteries) |
| Internal storage | 8 GB solid‑state |
| Dimensions (host) | Diameter 175 mm, Height 83 mm |
| Operating temperature | -30 °C to 65 °C |
The K5pro supports Bluetooth 4.0 dual‑mode (also compatible with 2.1) and can pair with the hand‑held unit, smartphones, and tablets for data communication.
It uses a 7.4 V 3400 mAh smart battery, and the device can hold two batteries for extended runtime.
The device supports all current and planned GNSS satellite signals across multiple constellations and frequency bands, including the three‑frequency BDS B1/B2/B3 signals.
