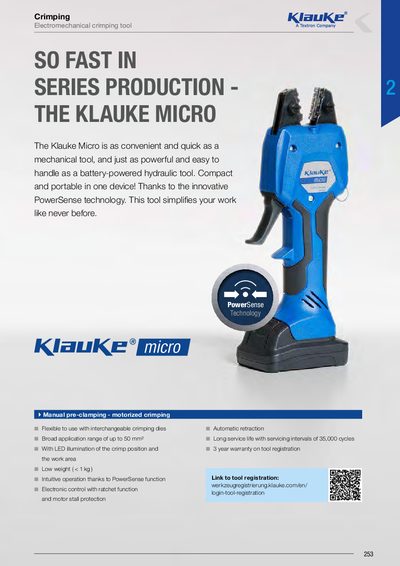

The Klauke EK 50 ML electromechanical crimping tool combines manual convenience with battery‑powered hydraulic power, offering PowerSense technology…
The EK 50 ML is a compact, portable crimping tool that uses PowerSense technology for intuitive, one‑button operation. It features electronic control with ratchet and motor‑stall protection, automatic retraction, LED work‑area illumination, and a lightweight design under 1 kg.
Technical data include a maximum crimping force of 15 kN, a crimping range of 0.14‑50 mm², a 10.8 V 1.5 Ah Li‑Ion battery with a 40‑minute charge time, and a total weight of 0.96 kg. The tool is supplied with interchangeable dies for various connector types and a 3‑year warranty upon registration.
| Maximum crimping force | 15 kN |
|---|---|
| Crimping range | 0.14 – 50 mm² |
| Battery voltage | 10.8 V |
| Battery capacity | 1.5 Ah (Li‑Ion) |
| Charging time | ≈ 40 min |
| Weight (incl. battery) | 0.96 kg |
| Operating temperature range | -10 °C to +40 °C |
| Number of crimps per charge (10 mm² Cu) | ≈ 300 |
The tool can deliver up to 15 kN of crimping force.
Charging the 10.8 V Li‑Ion battery takes about 40 minutes.
The EK 50 ML weighs 0.96 kg including the battery.
It can crimp sizes from 0.14 mm² up to 50 mm².
