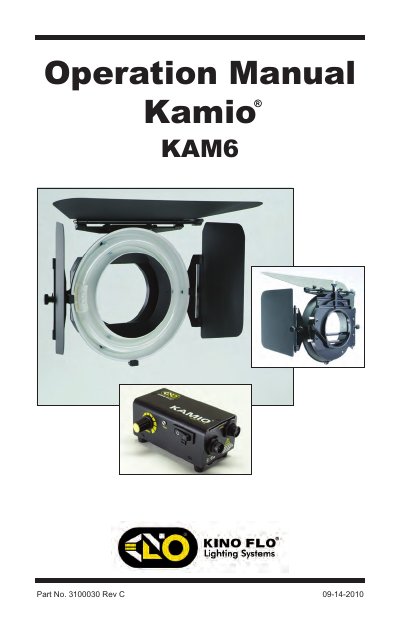

The operation manual for the Kino Flo KAM6 ring‑light and matte‑box kit, covering setup, mounting, ballast operation and accessories.
The KAM6 is a combination ring‑light and two‑stage matte box that mounts directly to a camera lens. It is powered by an on‑board 12‑24 VDC dimming ballast and is intended for front‑fill beauty lighting.
The manual provides detailed instructions for kit contents, lens mounting, filter handling, gel application, ballast controls, and optional accessories, as well as technical specifications for the ballast and fixture.
| Input Voltage | 12-24VDC |
|---|---|
| Power Rating (12VDC) | 30 Watts @ 2.5 A |
| Output Frequency | 25 kHz |
| Size | 4.7 × 2.5 × 2 in |
| Weight (ballast only) | 1.0 lb (0.4 kg) |
| Fixture Dimensions | 10 × 9 × 2.5 in |
| Opening | 112 mm |
| Mount Type | Clip onto lens |
| Filter Stations | 2 |
| Weight with Lamp | 1.2 lb (0.5 kg) |
The ballast operates from 12 VDC up to 24 VDC.
The maximum cable distance is 30 ft, using two 15‑ft cables.
No – using a camera battery charger can overload it and cause failure.
The clamp ring fits lenses with an outside diameter of 112 mm, such as Panavision Primo Primes.
