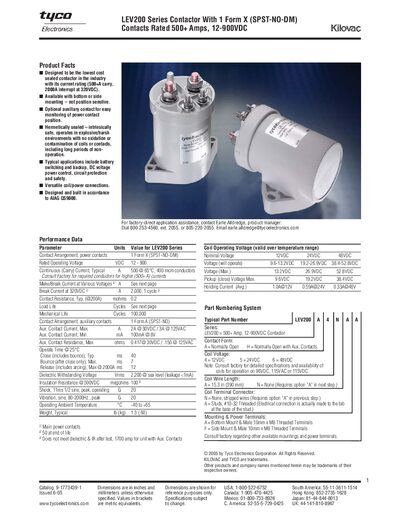

The Kilovac LEV200 Series Contactor datasheet provides specifications, dimensions, performance data, and part numbering for the 500+ A, 12‑900 VDC sealed…
This datasheet describes the Kilovac LEV200 Series sealed contactor, designed for high‑current DC applications such as battery switching and circuit protection. It includes product facts, performance data, mechanical and electrical life ratings, and detailed dimensions.
Key information covers rated voltage (12‑900 VDC), continuous current (500 A), break current (2000 A at 320 VDC), coil voltage options (12 VDC, 24 VDC, 48 VDC), and mounting configurations. Part numbering and auxiliary contact options are also provided for system integration.
| Rated Operating Voltage | 12‑900 VDC |
|---|---|
| Continuous Carry Current (Typical) | 500 A @ 65 °C |
| Mechanical Life Cycles | 100,000 |
| Weight (Typical) | 1.3 lb (0.60 kg) |
| Dielectric Withstanding Voltage | 2,200 Vrms (sea level) |
| Insulation Resistance @ 500 VDC | 100 MΩ |
| Coil Nominal Voltage Options | 12 VDC, 24 VDC, 48 VDC |
The typical continuous (carry) current is 500 A at 65 °C.
It can withstand 2,200 Vrms at sea level.
Coils are offered for 12 VDC, 24 VDC, and 48 VDC nominal voltages.
The mechanical life rating is 100,000 cycles.
