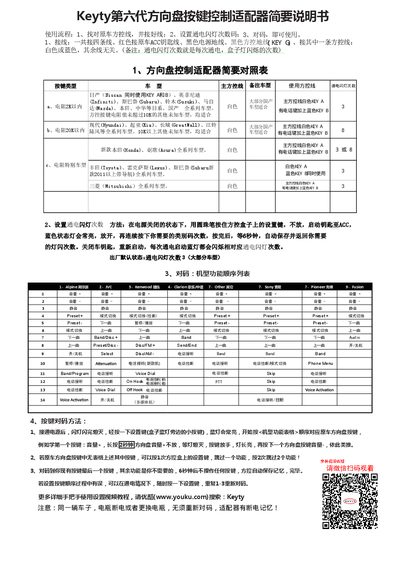

The Keyty 6th Generation steering wheel button control adapter manual explains wiring, setup, pairing and button functions for compatible vehicles.
This manual describes the Keyty 6th Generation steering wheel button control adapter, including button types, compatible vehicle models, wiring, configuration of power‑on flash count, and the pairing process. It provides step‑by‑step instructions for installing the four‑wire connection and setting up the adapter to work with the original steering‑wheel controls.
The document also includes a reference table for button functions and a list of supported vehicle brands and their required control‑line resistance ranges. Video tutorials are referenced for additional guidance. This manual is written in Chinese.
| Number of wires | 4 |
|---|---|
| Wire colors | Red (ACC), Black (ground), White or Blue (control) |
| Supported resistance (Nissan) | ≤2 kΩ |
| Supported resistance (Hyundai) | ≤20 kΩ |
Four wires are required: red to the ACC line, black to ground, and a white or blue wire to the control line.
The adapter works with Nissan, Infiniti, Subaru, Suzuki, Mazda, Honda, Hyundai, Kia, Great Wall, and many other Japanese and domestic models.
