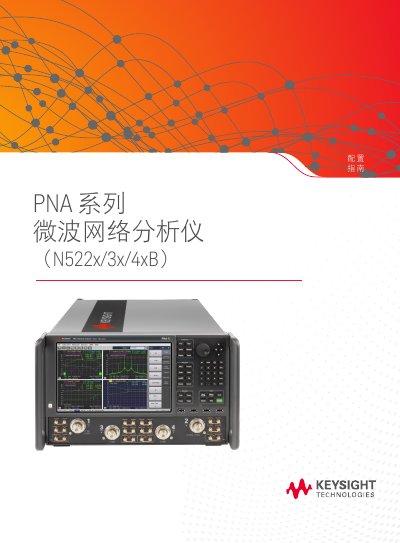

Keysight Technologies PNA Series Network Analyzer User Guide

This guide covers configuration, accessories, and applications for Keysight PNA-X, PNA, and PNA-L series network analyzers.

Brand: Keysight Technologies
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 44
File format: PDF
File size: 5 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: BF19BDE48CFB249CF1C1CD1C929271E3
PDF: Keysight Technologies PNA Series Network Analyzer User Guide PDF

About this manual

This document introduces the Keysight PNA series of vector network analyzers (VNA), covering the PNA-X, standard PNA, and PNA-L configurations. It details various models ranging from 300 kHz to 67 GHz, including specific part numbers like N5249B and N5221B. This manual is written in Chinese.

What's inside

PNA Series Configuration
Accessories Overview
Hardware Options
Measurement Applications
Calibration Accessories
Signal Integrity Measurement

Frequently asked questions

What is the frequency range of the N5239B model?

The N5239B model covers a frequency range from 300 kHz to 9.5 GHz.

Which option is required to use the low noise receiver on the N5245B?

Option 029 is required to use the low noise receiver on the N5245B.

What is the maximum pulse width supported by option S93026A?

Option S93026A supports a maximum pulse width of 20 ns.
