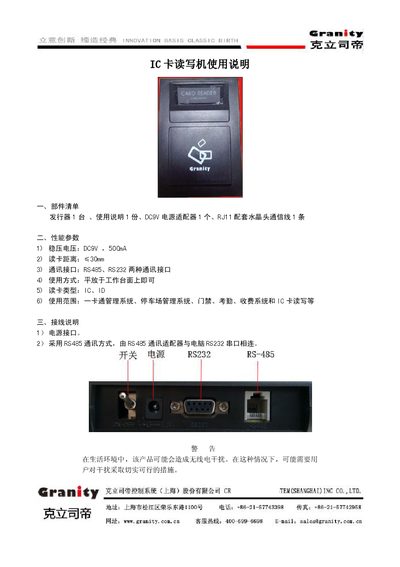

The Keli Sidi IC Card Reader User Manual provides specifications, wiring instructions, and safety warnings for the device.
This manual describes the IC card reader, its components, and how to operate it safely. It includes a parts list, performance parameters, wiring details, and warnings.
Key sections cover the regulated power requirements, supported communication interfaces, reading distance, and recommended placement on a workbench. The document also provides safety guidance for use in environments that may cause radio interference. This manual is written in Chinese.
| Regulated voltage | DC9V, 500 mA |
|---|---|
| Reading distance | <30 mm |
| Communication interfaces | RS485, RS232 |
| Supported card types | 106, 1D |
It requires a regulated DC9V supply with a current of 500 mA.
The device supports both RS485 and RS232 communication interfaces.
The reading distance is less than 30 mm.
