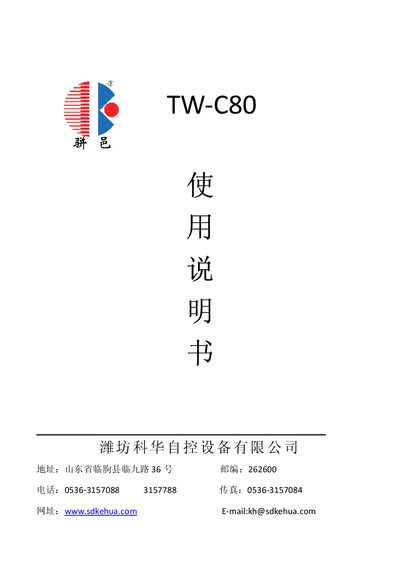

The manual explains installation, parameter setting, calibration and operation of the TW‑C80 weighing controller.
This document provides detailed instructions for the TW‑C80 weighing controller, covering system performance, technical specifications, wiring, and communication settings. It guides users through installation, parameter configuration, calibration, and normal operation.
The controller is designed for static, dynamic and constant‑speed weighing applications, offering multiple analog inputs and outputs, RS‑485 communication, and automatic zero‑adjustment. The manual also describes troubleshooting steps and safety precautions. This manual is written in Chinese.
| Supply voltage | AC 220 V ±10 % |
|---|---|
| Frequency | 50 Hz / 60 Hz |
| Analog input range | 0 – 1.25 V corresponds to 0 – 30000 |
| Sensor supply | 6 V, 150 mA max |
| Analog output | 0 – 5 V |
Press the SET key when SB=1; the controller enters calibration mode and you follow the on‑screen prompts to complete calibration.
Set CAL to 66 and press the SET key; this clears the accumulated total production value.
Use the S4E parameter to select either keyboard entry or a 4‑20 mA remote signal for the flow setpoint.
