Technical specifications and application information for Karson Electronics' T038‑SD060 Sendust toroidal core.
The T038‑SD060 is a Sendust toroidal core offering high saturation flux density, excellent DC bias characteristics, and low core loss. It is intended for use in switch‑mode power supplies, power‑factor‑correction chokes, DC‑DC converter chokes, and pulse or flyback transformers.

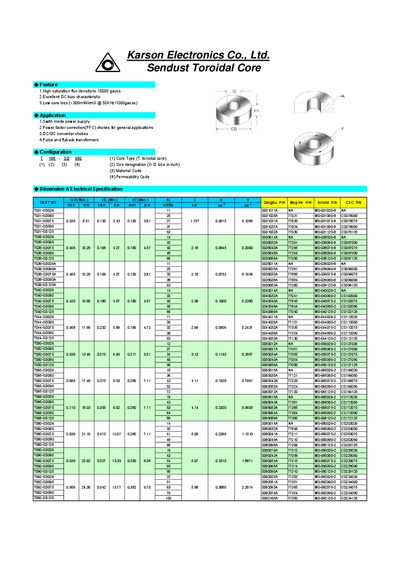

The document provides detailed dimensions, material and permeability codes, and graphs of core loss and permeability versus frequency and DC bias for a range of core sizes and types.
| Saturation flux density | 10000 gauss |
|---|---|
| Core loss (50 kHz, 1000 gauss) | ~300 mW/cm³ |
| Permeability code | L |
The T038‑SD060 core has a saturation flux density of 10 000 gauss.
Its core loss is approximately 300 mW per cubic centimeter under those conditions.
They are used in switch‑mode power supplies, power‑factor‑correction chokes, DC‑DC converter chokes, and pulse or flyback transformers.
