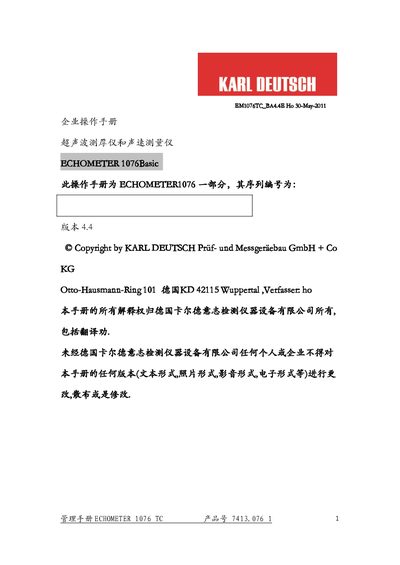

The Karl Deutsch ECHOMETER 1076 TC ultrasonic thickness gauge operation manual provides usage instructions, specifications, and maintenance guidelines.
The ECHOMETER 1076 TC is an ultrasonic thickness gauge and sound‑velocity meter designed for measuring wall thickness and acoustic speed in various materials. It offers standard and TC measurement modes, data recording, and optional probe accessories.
The manual covers safety precautions, probe connections, menu navigation, data management, cleaning, technical specifications, and disposal instructions, helping users operate and maintain the instrument safely and accurately. This manual is written in Chinese.
| Frequency range | 0.6–40 MHz |
|---|---|
| Input sensitivity | 1.5 mV (100 % coupling) |
| Input impedance | 150 Ω ±18 % |
| Serial interface | RS232C, 4800 baud |
| Memory capacity | up to 9 999 readings |
| Maximum readings per folder | 999 |
| Operating temperature | -10 °C to +50 °C |
| IP protection rating | IP54 |
| Dimensions (W×H×D) | 120 × 65 × 25 mm |
| Weight | 175 g (without bracket), 250 g (with battery & bracket) |
The instrument complies with IP54 protection, meaning it is splash‑proof.
