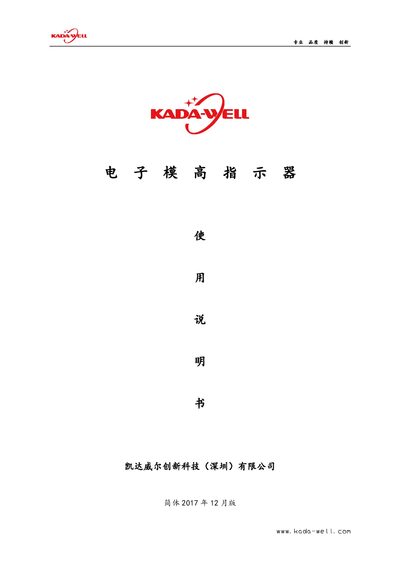

The KADA-WELL KDL-0450 electronic mold height indicator manual provides installation, wiring, operation and communication details.
The KDL-0450 is an electronic mold height indicator designed for stamping, shearing, forging and pressing machines. It offers high‑precision display, limit‑warning, three‑protect (oil, water, dust) protection, and RS485 ModbusRTU data communication.
The manual covers product features, specifications, panel description, parameter setting steps, wiring diagrams for AC and DC output types, communication interface details, and ordering information. This manual is written in Chinese.
| Power Supply | DC24±10% |
|---|---|
| Power Consumption | ≥2 W |
| Shock Resistance | 30 G |
| Protection Rating | IP65 |
| Maximum Rotational Speed | 1000 RPM |
| Display Accuracy | 0.01 |
| Display Range | 0.01 – 999.99 |
| Operating Temperature | -20 °C – +70 °C |
| Communication Interface | RS485 two‑wire half‑duplex, ModbusRTU |
| AC Control Contact | 240 V – 500 mA (NC) |
| DC Control Contact | 30 V – 200 mA (NC) (NPN/PNP) |
The device operates from a DC24 V supply with a tolerance of ±10 %.
It uses an RS485 two‑wire half‑duplex connection with the ModbusRTU protocol.
The unit is rated IP65, providing full protection against dust ingress and water jets.
