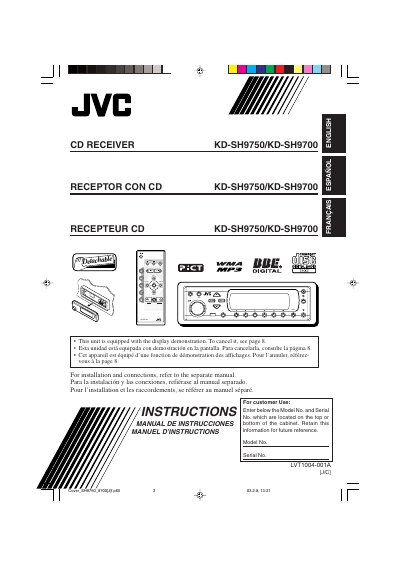

The JVC KD-SH9750/KD-SH9700 CD Receiver Instructions Manual provides setup, operation, and troubleshooting guidance for the unit.
This manual explains how to install, set up, and operate the JVC KD-SH9750/KD-SH9700 CD receiver. It covers basic operations, radio and CD functions, DSP and equalizer settings, sound adjustments, CD‑changer use, external component connections, and maintenance procedures.
The document also lists technical specifications such as the compact‑disc player type, laser pickup system, audio power output, frequency ranges for FM/AM tuners, dimensions, and power requirements, helping users understand the performance limits of the receiver.
| Type | Compact disc player |
|---|---|
| Signal Detection System | Non-contact optical pickup (semiconductor laser) |
| Number of Channels | 2 channels (stereo) |
| Frequency Response (CD) | 5 Hz to 20 000 Hz |
| Dynamic Range | 98 dB |
| Signal‑to‑Noise Ratio (CD) | 102 dB |
| Operating Voltage | DC 14.4 V (11 V to 16 V allowance) |
| Installation Size | 182 mm × 52 mm × 161 mm |
| Mass | 1.8 kg (4.0 lbs) |
| Front Audio Power Output | 50 W per channel |
| Front Continuous Power (RMS) | 19 W per channel into 4 Ω, 40 Hz‑20 kHz, ≤0.8% THD |
| FM Frequency Range | 87.5 MHz to 107.9 MHz |
| AM Frequency Range | 530 kHz to 1 710 kHz |
When an MP3/WMA disc is inserted, the unit first reads the disc’s file structure (folders, files, and session information), which can take longer if the structure is complex or contains many files.
Sound interruption or skipping may occur due to recording problems (missing data) or media issues such as stains, scratches, or warping on the disc.
Files recorded with variable‑bit‑rate (VBR) can show a discrepancy in elapsed time because the playback time calculation does not match the actual data rate.
The KD‑SH9750 and KD‑SH9700 models support both MP3 and WMA files, as well as standard CD‑DA audio.
