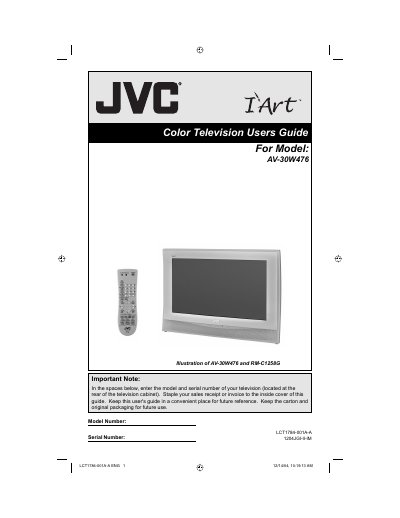

The JVC AV-30W476 User Manual provides safety instructions, setup steps, remote control guidance, and specifications for this color television.
This guide covers important safety precautions, proper installation, ventilation, and grounding requirements for the AV-30W476 CRT television. It explains how to unpack the unit, connect an antenna or cable, and set up the remote control, including battery installation and button functions.
The manual also details picture and sound settings, channel setup, and troubleshooting tips, and includes a full specifications table with screen size, power requirements, audio output, and dimensions. Warranty information and authorized service center contacts are provided at the end.
| Screen Size | 2 1/2 x 5 inch / 6.5 x 13 cm oval |
|---|---|
| Power Source | AC 120V, 60Hz |
| Reception Format | NTSC, BTSC System (Multi‑Channel Sound) |
| Reception Range | VHF 2‑13, UHF 14‑69 |
| Antenna Terminal Impedance | 75 Ω (F‑type connector) |
| Audio Output | 500 mVrms (‑4 dB) high impedance |
| Dimensions (W×H×D) | 83.8 mm × 59.6 mm × 55.4 mm |
| Weight | 115.1 lb / 52.2 kg |
| Remote Control Batteries | 2 AA batteries (included) |
Lift and pull the latch on the back of the remote, insert two AA batteries with the correct polarity, and snap the cover back into place.
Unpack the TV, keep the sales receipt inside the guide, read the safety and setup sections, connect the antenna or cable, and ensure proper ventilation.
