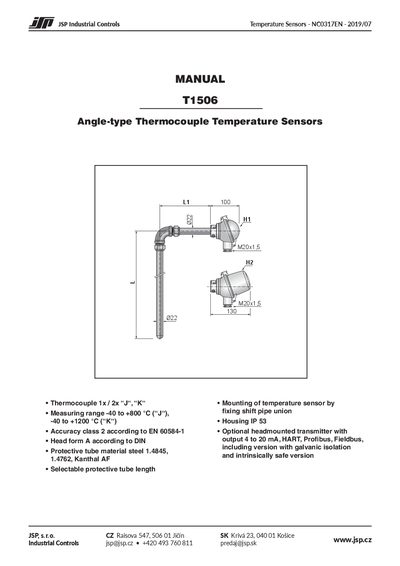

The JSP T1506 manual provides installation, operation, maintenance, specifications and ordering information for angle‑type thermocouple temperature sensors.
This manual covers general instructions, safety warnings, delivery contents, storage, installation, commissioning, spare parts, repairs, warranty and end‑of‑service procedures for the JSP T1506 angle‑type thermocouple temperature sensors. It also details optional head‑mounted transmitters and provides ordering tables.
Technical specifications, metrological parameters, applicable standards, marking information and optional accessories such as calibration kits and transmitters are listed, along with guidelines for safe handling and disposal.
| Accuracy class | 2 (EN 60584‑1) |
|---|---|
| Measuring range | -40 to +800 °C (J), -40 to +1200 °C (K) |
| Output signal | Voltage (no transmitter) or 4‑20 mA linearized (with transmitter) |
| Housing IP rating | IP 53 |
| Protective tube material | Steel 1.4845, 1.4762, Kanthal AF |
| Maximum head temperature | 150 °C (without transmitter), 85 °C (with transmitter) |
| Dielectric strength | 500 V (effective) |
The T1506 measures –40 °C to +800 °C for type J thermocouples and –40 °C to +1200 °C for type K thermocouples.
The warranty period is 24 months from the delivery date noted on the delivery note.
Store the sensors at 5 °C to 35 °C with a maximum relative humidity of 80 % and avoid condensation, shocks, vibrations and harmful vapours.
The housing has an IP 53 rating.
