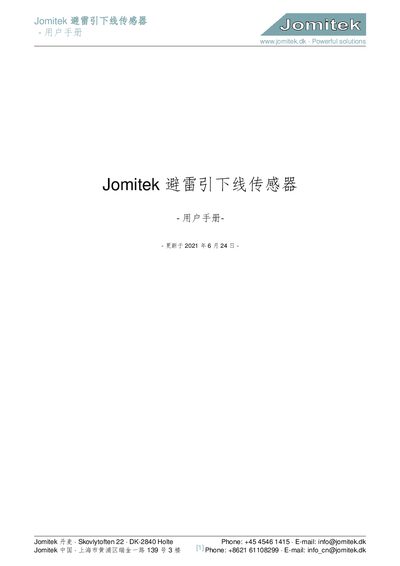

The Jomitek Lightning Downlead Sensor User Manual provides installation, configuration, and operation instructions for the sensor system.
This manual describes the purpose, hardware components, and measurement principle of the Jomitek lightning downlead sensor, which detects partial or full disconnection of lightning downlead cables on wind‑turbine blades. It covers power options, network interfaces, and safety considerations.
Installation steps for the determination box and measurement boxes, wiring guidelines, and testing procedures are detailed, along with software/firmware structure, web interface navigation, and advanced interfaces such as Telnet, FTP, and WebDAV. This manual is written in Chinese.
| Modbus address table – alarm status | Boolean (1=alarm) at address 0‑1 |
|---|
Press and hold the Test alarm button for 5 seconds to generate a manual alarm, which can be verified on the connected monitoring system.
It is strongly recommended to protect the internal Ethernet network with a firewall because the sensor’s external communication is unencrypted.
