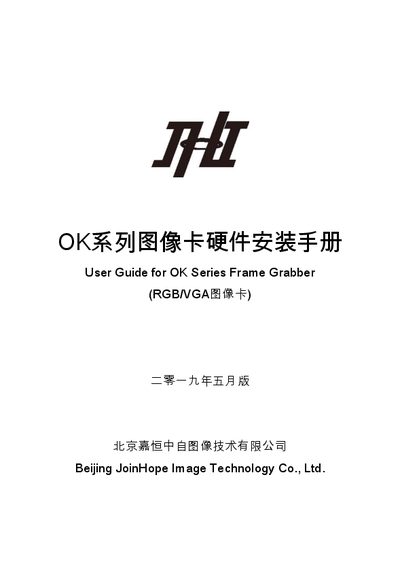

This manual provides hardware installation, driver setup, and testing instructions for JoinHope OK Series image capture cards.
The guide explains how to install and configure the OK Series image capture cards, covering system requirements, product contents, and step‑by‑step hardware installation for PCI, PCI‑E, USB and other bus types. It also details driver installation, software tools, and basic testing procedures to verify proper operation.
Additional sections cover advanced features such as cache allocation, image card management, and troubleshooting tips for common issues like driver conflicts or PCI slot problems. The manual includes contact information for technical support and warranty details. This manual is written in Chinese.
| Supported bus interfaces | PCI, PCI‑E, PCI‑X, USB, IEEE1394, PC/104, cPCI |
|---|---|
| Minimum CPU | 586 or higher |
| Minimum memory | 32 MB |
| Supported operating systems | Win95/98/ME, WinNT4, Win2000, XP, Vista, 7, 8, 10 |
| Default driver cache size | 16384 KB (16 MB) |
Open the OK Image Manager, go to the “Cache Allocation” tab, and set the desired cache size. After changing the value, restart the system for the new setting to take effect.
The package contains the OK Series image card, a user manual, and the standard interface cable(s) required for connecting video sources (e.g., composite video, S‑Video, or multi‑channel RCA cables).
