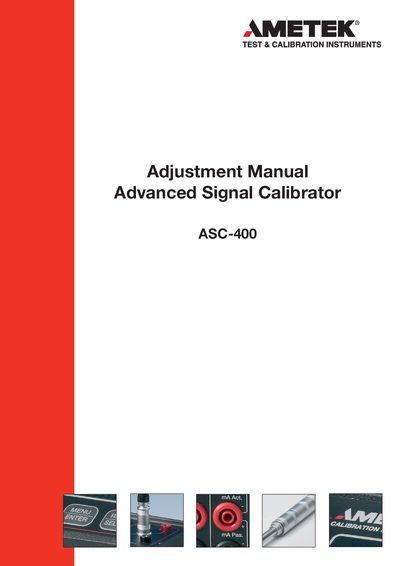

The JOFRA ASC-400 Adjustment Manual provides step‑by‑step procedures for calibrating and adjusting the Advanced Signal Calibrator via USB.
The ASC-400 Advanced Signal Calibrator includes a built‑in adjustment function that is accessed through a simple ASCII protocol over the USB interface. This manual describes the terminal‑mode adjustment process, required temperature conditions, and the calibration menu.
Adjustment is performed by connecting the calibrator to recommended test equipment, entering the calibration menu, and following the prompts for each function (current, voltage, resistance, thermocouple, barometric pressure, etc.). The document also lists the necessary USB driver installation steps and the password needed to access the menu.
| Calibration interval | 1 year |
|---|---|
| Warm‑up time | 5 minutes |
| Stable temperature range for warm‑up | 18 °C to 28 °C |
| Minimum stabilization time if outside range | 3 hours |
| USB virtual COM port name | AMETEK Advanced Signal Calibrator |
| Calibration menu password | 900 |
The password is 900.
A Fluke 8508A digital multimeter, a Fluke 5520A calibrator, and appropriate banana leads are listed as recommended equipment.
It needs about 5 minutes if it has been at a stable temperature of 18‑28 °C for at least an hour.
