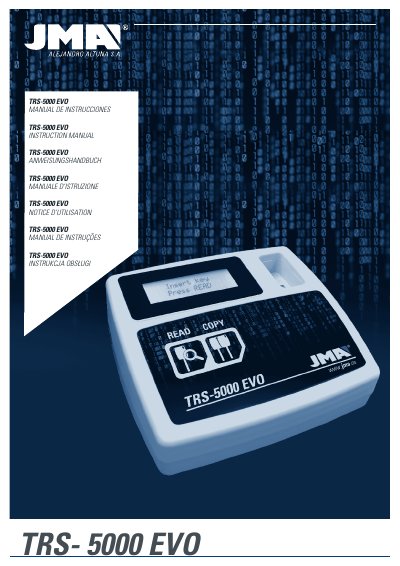

Instruction manual for the JMA TRS-5000 EVO key cutting machine, covering setup, operation and transponder cloning.
The JMA TRS-5000 EVO is a compact key cutting machine that supports a wide range of transponder types, including Texas Crypto and Philips Crypto. The manual provides presentation details, technical specifications, installation steps, and instructions for copying keys in local mode without a PC.
Key sections cover proper placement to avoid electromagnetic interference, power connection requirements, and step‑by‑step procedures for reading and cloning transponders, with messages displayed on the built‑in 4×20 alphanumeric screen.
| Power supply | 100‑240 V AC / 50‑60 Hz, 9 V DC 2.5 A |
|---|---|
| Dimensions (W × L × H) | 275 mm × 320 mm × 170 mm |
| Weight | 550 g |
| Display | 4 × 20 character alphanumeric |
| Push buttons | 2 (READ and COPY) |
| On/Off switch | 1 |
| USB connectors | 2 (CL for Cloner, TR for TRS‑5000 EVO) |
| DB9 connector | 1 female DB9 for RS‑232 |
It needs a universal 100‑240 V AC input at 50‑60 Hz and a 9 V DC supply capable of 2.5 A.
The machine should be positioned at least 80 cm to 100 cm away from any EMI source such as screens, motors or mobile phones.
There are two push buttons, labeled READ and COPY.
