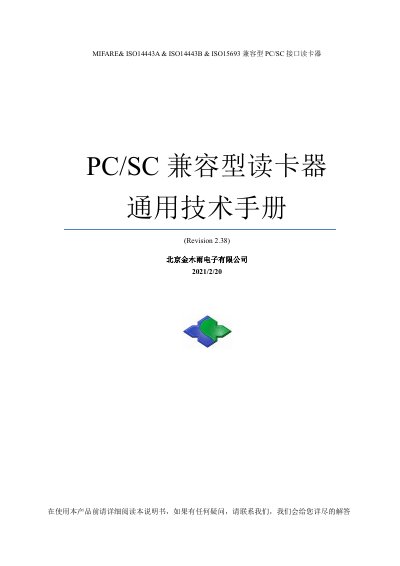

Jinmu Yu Electronics MIFARE & ISO14443A & ISO14443B & ISO15693 Compatible PC/SC Interface Reader User Manual

About this manual

The PC/SC interface reader from Jinmu Yu Electronics supports MIFARE, ISO14443A, ISO14443B and ISO15693 cards. It connects via a USB PC/SC interface and uses the standard Windows CCID driver, making development straightforward on Windows systems.

The manual covers driver installation, power‑on reset (ATR) information, basic operating principles, non‑standard APDU commands, card operation flow, and includes detailed appendices for key structures and command examples. This manual is written in Chinese.

What's inside

• Introduction
• Device Installation
• Driver Installation
• Power‑On Reset (ATR) Information
• Basic Operating Principles
• Non‑Standard APDU Command Details
• Card Operation Flow
• Appendix A

Specifications

Frequently asked questions

What ATR does the reader return?

For the MR800/MR881 reader the ATR is {3B 8F 80 01 80 4F 0C A0 00 00 03 06 00 00 00 00 00 00 00 68}.

How can I switch between contact and non‑contact cards?

Send the APDU command FF 00 FA 00 01 CurSmartCard to change the current smart card mode.
