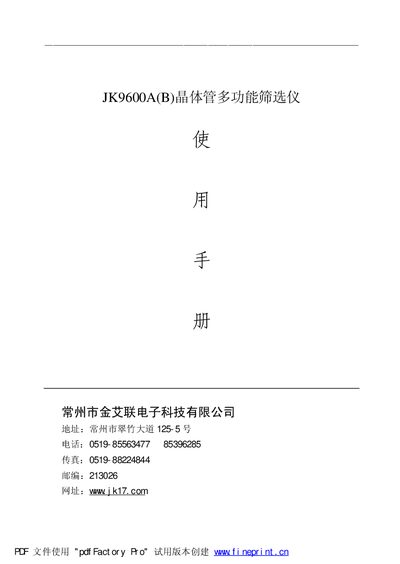

This manual explains the functions, technical specifications, setup, testing procedures, display options, and safety notes for the JK9600A(B) transistor…
The JK9600A(B) transistor multifunction screening instrument, developed by Jinke, measures transistor parameters such as β, switching times, VCES, VBE, ICEO and BVCEO. It offers automatic alarm, data‑grading, and can store up to twenty preset data groups for fast production‑line screening.
The manual provides an overview of the device, lists its main functions and technical specs, explains the basic measurement principles, and gives detailed instructions for setting parameters, performing tests, using the display, and handling safety and maintenance matters. This manual is written in Chinese.
| β measurement range | 0–99.9 |
|---|---|
| β accuracy | 2.5% ± 3 |
| VBE / VCES range | 0–2 V |
| VBE / VCES accuracy | 2.5% ± 3 |
| ICEO range | 0.1 µA–3 mA |
| ICEO accuracy | 5% ± 3 |
| BVCEO range | 50–650 V |
| BVCEO accuracy | 2.5% ± 3 |
| Switch time range | 0.01 µs–99.9 µs |
| Switch time accuracy | 2.5% ± 3 |
| Power supply | 220 V ± 10 % AC |
| Dimensions (L×W×H) | 400 mm × 360 mm × 160 mm |
The entire testing process takes only 1 second.
The instrument can simultaneously store up to twenty groups of data.
Press the “设定” key three times continuously to switch from work mode to setting mode.
