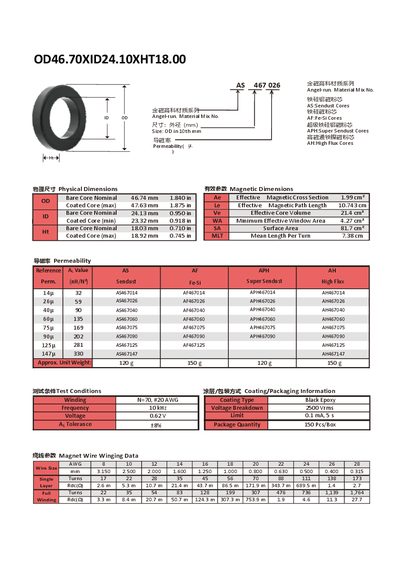

Technical specifications for Jinci High-Tech Angel-run magnetic powder cores, including dimensions, permeability, and test conditions.
The Angel‑run series from Jinci High‑Tech provides magnetic powder cores for electronic components. The datasheet lists physical and magnetic dimensions, material mixes, and test parameters for each core size.
Key data include outer/inner diameters, height, effective magnetic cross‑section, magnetic path length, window area, surface area, permeability codes, and standard test conditions such as frequency and voltage. Coating and packaging details are also provided. This manual is written in Chinese.
| Outer Diameter (OD) | 46.70 mm |
|---|---|
| Inner Diameter (ID) | 24.10 mm |
| Height (HT) | 18.00 mm |
| Effective Magnetic Cross Section | 1.99 cm² |
| Effective Magnetic Path Length | 10.743 cm |
| Minimum Effective Window Area | 4.27 cm² |
| Surface Area | 81.7 cm² |
| Coating | Black Epoxy |
The core measures 46.70 mm outer diameter, 24.10 mm inner diameter, and 18.00 mm height.
The effective magnetic path length is 10.743 cm.
The cores are coated with black epoxy.
