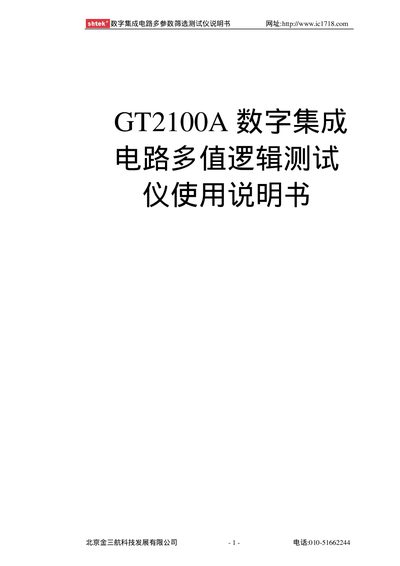

User manual for the GT2100A tester that measures multiple parameters of digital ICs such as voltage, current and pin status.
About this manual
The GT2100A Digital IC Multi‑Parameter Tester, produced by Jin San Hang Technology, provides a range of test modes for TTL and CMOS ICs, including full‑parameter, functional and custom tests. The device features an intuitive interface with LED indicators, a keypad for mode selection, and automatic identification of 74‑series CMOS devices.
The manual explains power requirements, wiring, parameter settings, test procedures, result interpretation (PASS/FAIL), and troubleshooting. It also lists technical specifications such as voltage ranges, current limits and environmental limits. This manual is written in Chinese.
What's inside
- Introduction
- Power Supply and Safety
- Operation Instructions
- Parameter Settings
- LED Indicators
- Testing Procedure
- Result Interpretation
- Specifications
Specifications
| Power Supply | 220 V AC ±10 % |
|---|
| LED Indicators | L0 – power, L1‑L5 – IC pin status |
|---|
| Maximum Input Current (TTL, 5 V) | Iimax = 200 µA |
|---|
| Maximum Input Current (CMOS, 5 V) | Iimax = 10 µA |
|---|
| Maximum Output Current (TTL, 5 V) | Ioh max < 8 mA |
Frequently asked questions
How are PASS and FAIL results indicated on the display?
PASS is shown as “PASS”; FAIL conditions appear as “FAILin”, “FAILout” or “FAIL I C C”.
What is the required power supply for the GT2100A?
It requires a 220 V AC supply with a tolerance of ±10 %.
What do the LED indicators L1‑L5 represent?
LEDs L1 through L5 display the status of the corresponding IC pins during testing.
