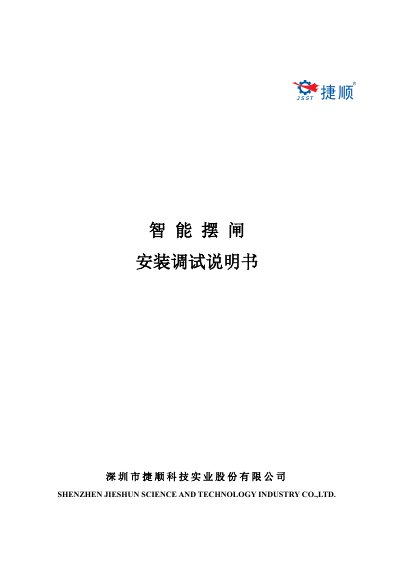

Jieshun JSTZ3902/JSTZ3905A Swing Gate Installation and Debugging Manual

About this manual

This manual covers the installation and debugging of Jieshun intelligent swing gates, specifically models JSTZ3902 and JSTZ3905A. It details the product introduction, technical parameters, system working principles, and the composition of the equipment. The guide explains how to configure the system, including setting up entry and exit modes, and describes the interaction between the gate and infrared sensors for safety. This manual is written in Chinese.

What's inside

• Product Introduction
• Technical Parameters
• System Working Principle
• Equipment Composition
• Installation Steps
• Parameter Settings
• Operation Instructions
• Maintenance and Care
• Troubleshooting

Frequently asked questions

What is the rated power of the JSTZ3902 and JSTZ3905A swing gates?

The rated power for both the JSTZ3902 and JSTZ3905A swing gates is 100W.

What is the maximum channel width for the JSTZ3905A swing gate?

The maximum channel width for the JSTZ3905A swing gate is less than 1200mm.

What happens if a person reads a valid card but does not pass through within the set time?

The system will close the channel and cancel the swipe, requiring the user to swipe again to pass.
